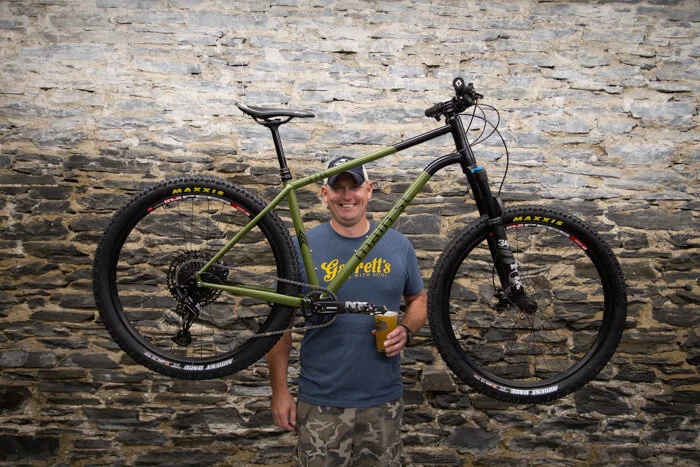

main st. Hardtail
built for 27.5x2.8 inch wheels, front suspension, and fun days on the trails.
This customer had an old MTB that served them well for many many rides. After riding with friends on their modern machines, it was time for something new of his own.

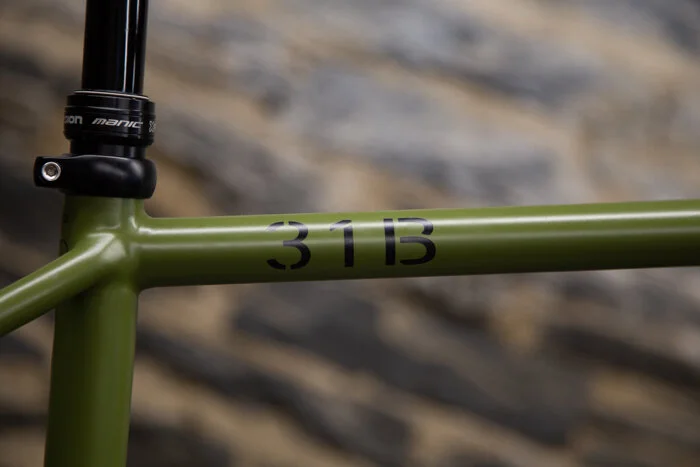

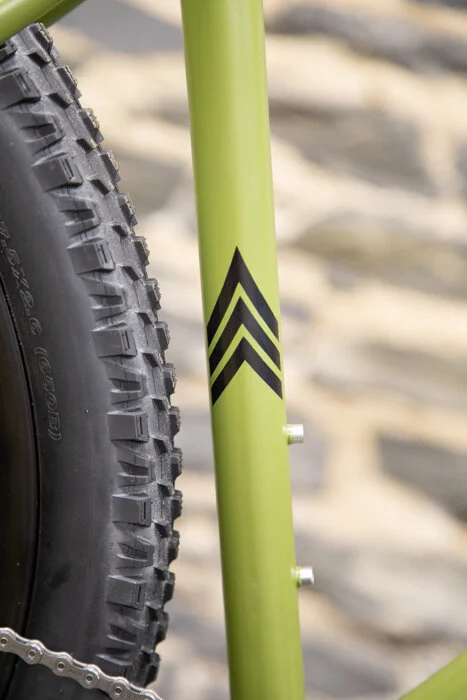

Honoring time served with color choice and model name this sturdy yet nimble build will give many good years of its own service.

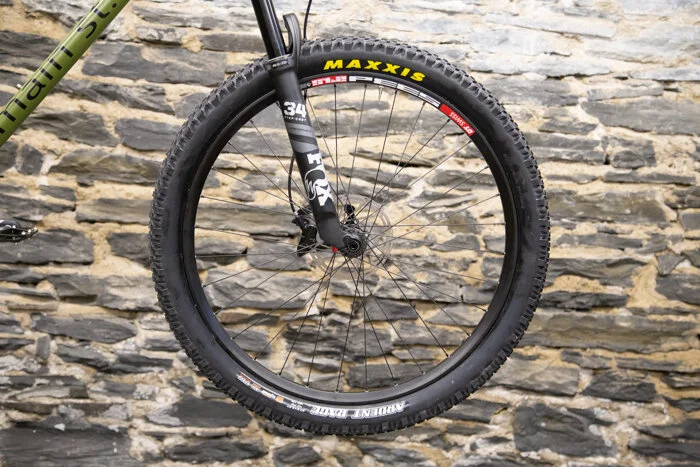

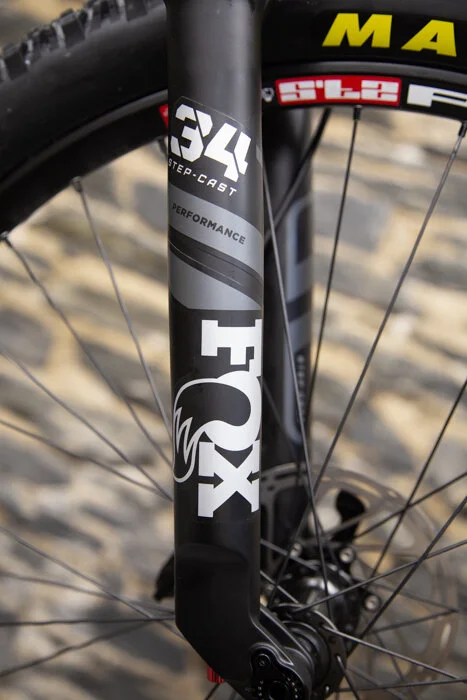

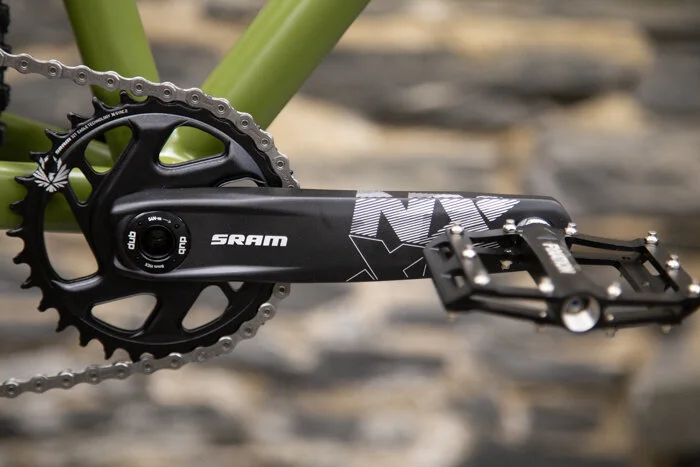

Columbus Zona tubing, SRAM 1x12 drive, Shimano brakes (flat mount rear), Fox front suspension, and 150 mil dropper, on 27.5 x 2.6 tires.
Geo Chart - Click to enlarge
| TTE |
Toptube Effective | 652 mm |
| STL | Seat Tube Length | |
| HTA | Head Tube Angle | 68.5° |
| STA | Seat Tube Angle | 71.5° |
| BBD | Bottom Bracket Drop | 59 mm |
| CSL | Chain Stay Length | 436 mm |
| HTL | Head Tube Length | |
| FL | Fork Length | |
| FO | Fork Offset | |
| WB | Wheelbase | |
| S | Stack | 685 mm |
| R | Reach | 3421 mm |
| Color |
