main st. gravel
longer and slacker to offer better handling over unpaved terrain.
Craig has been an avid road cyclist for years and has owned some fine machines for that discipline. Those bikes brought him past many side roads he wanted to explore. So we looked at his position on his carbon road racer, maintained what was comfortable from it, lowered the bottom bracket, lifted the stack just a bit, relaxed the head angle, and gave him room for 700x44 mm tires.
Craig is now happily exploring all those side roads and a little single track!

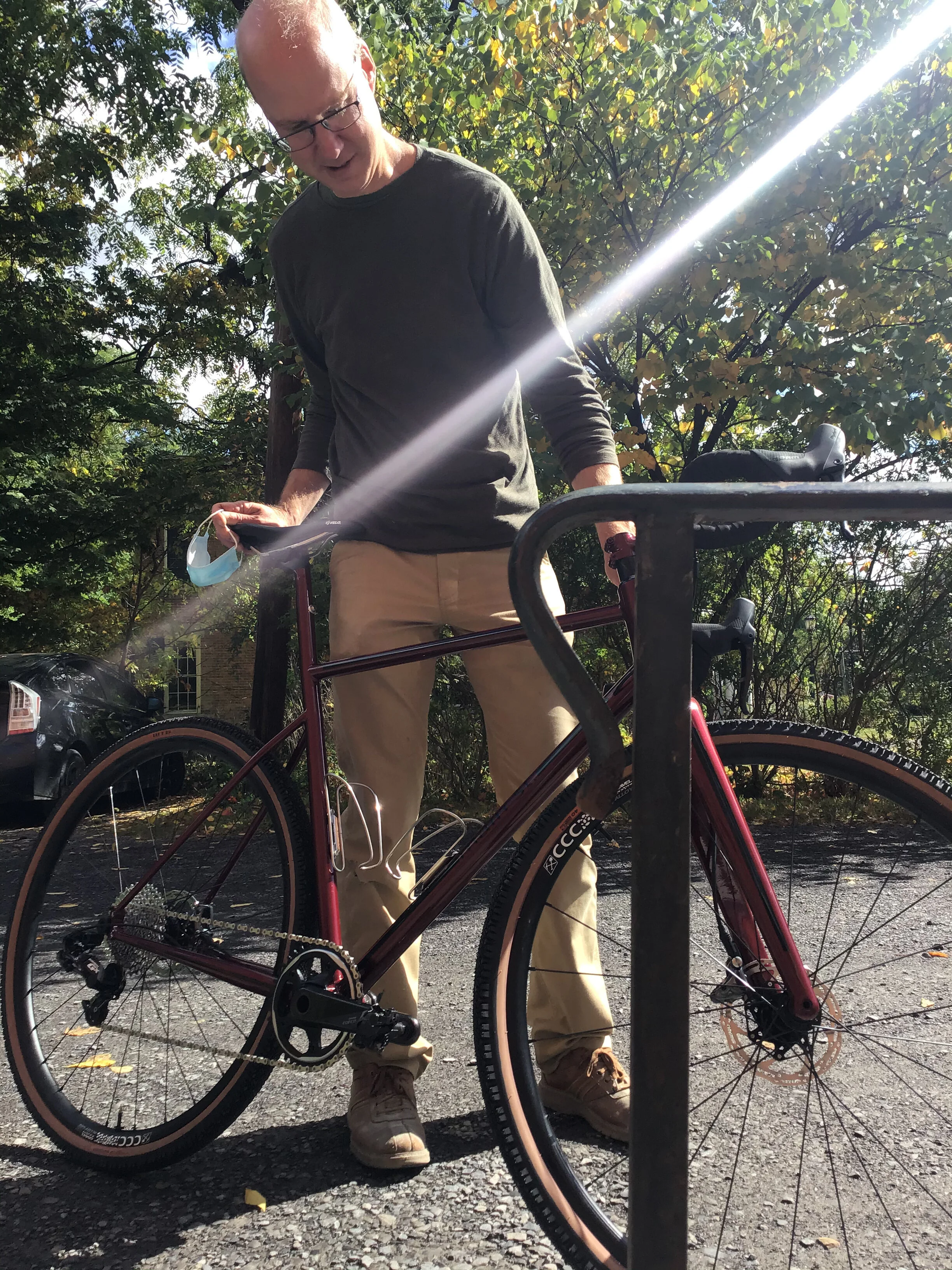

Columbus Life head, top, and down tubes. Columbus SL stays. Reynolds 853 seat tube.
Built with Sram Force 1x11 40/11-36, flat-mount. WTB rubber on Boyd Cycling CCCs at 20lbs even, as pictured with Ritchey pedals..
Geo Chart - Click to enlarge
| ETT |
Effective Toptube | 590 mm |
| STL | Seat Tube Length | |
| HTA | Head Tube Angle | 70.75° |
| STA | Seat Tube Angle | 73° |
| BBD | Bottom Bracket Drop | 71.5 mm |
| CSL | Chain Stay Length | 426 mm |
| HTL | Head Tube Length | |
| FL | Fork Length | |
| FO | Fork Offset | |
| WB | Wheelbase | |
| S | Stack | 575 mm |
| R | Reach | 405 mm |
| Color | Burgundy/Black |
